Hikvision DS-PDC10AM-VG3 curtain PIR Detector for Ax Pro,detection distance10m wall mounted, 5m, (ceiling mounted) installation height 2 - 3,5m, Anti mask protection, IP65 for external use.
RF range: 1600m (open space). Detection distance: 10m wall mount / 5m ceiling mount, Installation height: 2 to 3.5m. Anti-masking support. IP65 weatherproof for outdoor application

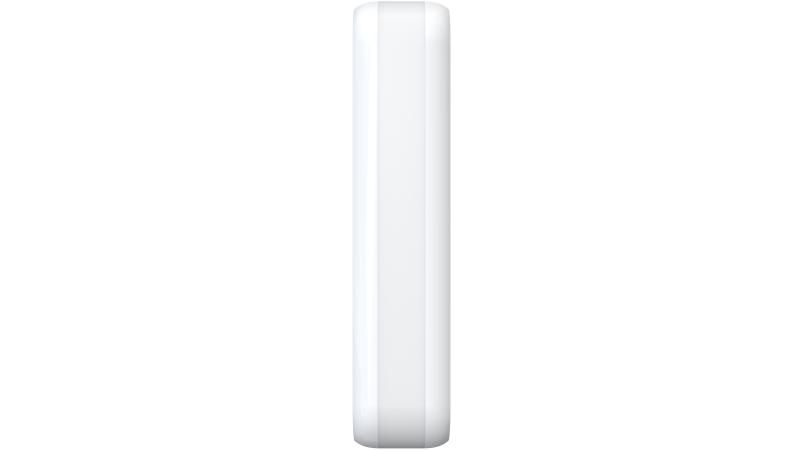

HIKVISION DS-PDC10AM-VG3
Wired PIR Curtain Detector with Anti-Masking (Indoor/Outdoor, IP65)
The HIKVISION DS-PDC10AM-VG3 is a wired PIR curtain motion detector designed for precise perimeter protection in residential, commercial, and industrial environments. Its slim curtain detection design makes it ideal for windows, doors, and narrow areas, providing early intrusion detection.
Using passive infrared (PIR) technology, the detector offers a focused detection angle of 5° with a range of up to 10 meters (wall mount) and 6 meters (ceiling mount), ensuring accurate and targeted motion detection.
Equipped with active IR anti-masking, sealed optics, and digital signal processing, the DS-PDC10AM-VG3 ensures high detection reliability and strong resistance to interference and tampering. It also features automatic sensitivity adjustment and digital temperature compensation for consistent performance in varying environments.
Designed for both indoor and outdoor use, the detector features an IP65-rated weather-resistant housing, allowing it to operate in harsh conditions while maintaining reliable performance.
With front and rear tamper protection, directional detection, and creep zone protection, the device enhances security coverage and system integrity. It integrates easily into wired alarm systems with a 12V DC power supply and relay output.
In summary, the HIKVISION DS-PDC10AM-VG3 provides a high-precision, durable, and professional curtain detection solution, ideal for perimeter protection and intrusion prevention.
Key Features:
Wired PIR curtain motion detector
Narrow 5° detection angle for perimeter protection
Detection range: up to 10 m (wall) / 6 m (ceiling)
Active IR anti-masking and sealed optics
Digital signal processing & temperature compensation
IP65 weather-resistant design (indoor/outdoor use)
Front & rear tamper protection
Creep zone protection and directional detection
12V DC operation with relay output
Ideal for windows, doors, and narrow protection zones
