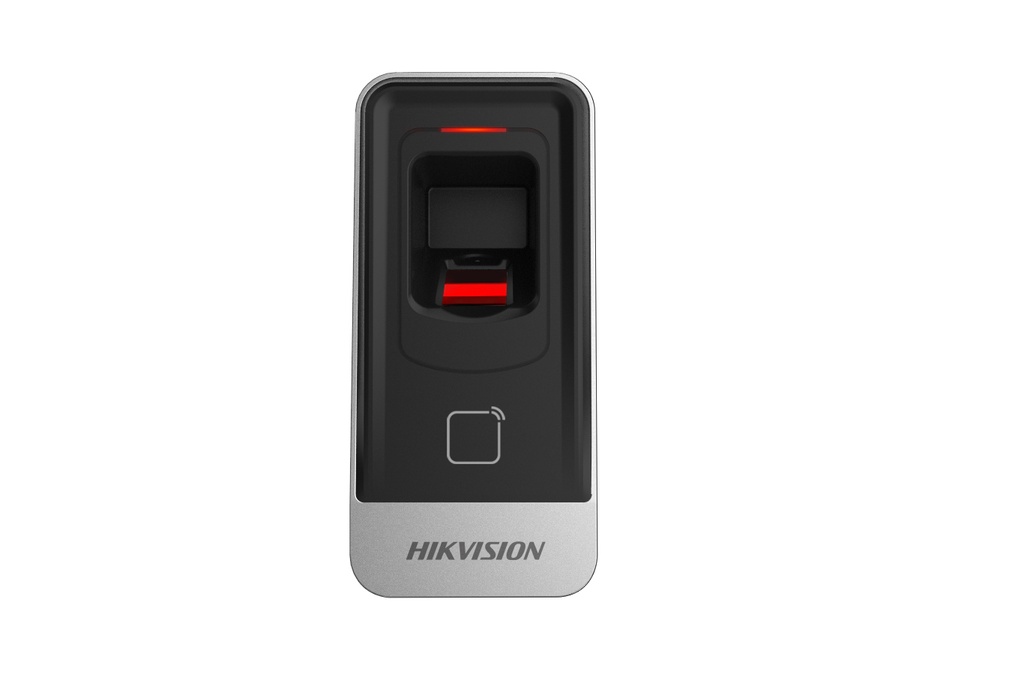

Hikvision DS-K1201AMF Lecteur de cartes d'empreintes numériques + Carte (RS485 / Wiegand ) Mifare
A group of messy code encrypted data for the security of fingerprint storage
Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
Supports M1 card reading
Card induction distance is 30 mm to 100 mm
Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
Max. 5000 fingerprints storage
Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
Communication circuit is designed with optical coupling isolation and noise suppression function
Built-in buzzer for status indication
Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Tamper-proof function
Hikvision DS-K1201AMF – Fingerprint & MIFARE Card Reader .
The Hikvision DS-K1201AMF is a robust and high-performance fingerprint and card reader designed for professional access control applications. Combining biometric fingerprint recognition with MIFARE contactless card technology, this device delivers secure, fast, and reliable identity authentication for a wide range of environments.
Engineered for both indoor and outdoor use, the DS-K1201AMF features a durable, weather-resistant housing and supports multiple communication interfaces, making it easy to integrate with Hikvision access control panels and third-party systems. Its advanced fingerprint algorithm ensures high recognition accuracy and rapid response, even under challenging conditions.
Ideal for offices, industrial facilities, commercial buildings, banks, data centers, and residential complexes, the DS-K1201AMF enhances access security while maintaining user convenience and operational efficiency.
Key Features:
Fingerprint and MIFARE card reader for access control systems
High-accuracy optical fingerprint sensor with fast identification speed
Supports MIFARE 13.56 MHz contactless cards
Multiple authentication modes: fingerprint, card, or combined verification
Communication interfaces: RS-485 and Wiegand (W26/W34)
Built-in tamper alarm for enhanced security
LED indicators and buzzer for clear user feedback
Durable design suitable for indoor and outdoor installation
IP65-rated weather-resistant housing
Operating temperature: approx. -20 °C to +65 °C
Compatible with Hikvision access control controllers .
| Identification Technology | MF-13.56Mhz & Finger & Pin |
